VitaFlow® Transcatheter Aortic Valve System
Registration Information

1.Medical Device Name: VitaFlow® Transcatheter Aortic Valve System (Trade Name: VitaFlow®)

2.Manufacturer: MicroPort CardioFlow Medtech Corporation

3.Registration Certificate Number: NMPA Registration No. 20193130494



Registration Information

1.Medical Device Name: VitaFlow®Transcatheter Aortic Valve System (Trade Name: VitaFlow®)

2.Manufacturer: MicroPort CardioFlow Medtech Corporation

3.Registration Certificate Number: NMPA Registration No. 20193130494

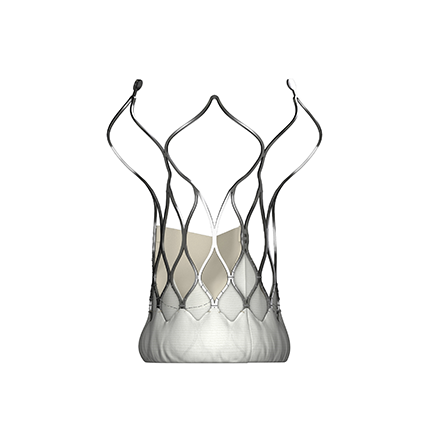

Aortic Valve
Product Picture
Aortic Valve
Product Code Valve Size D(mm) Aortic Annulus Diameter(mm) Valve Height H(mm)
TAV21 21 17~20 50
TAV24 24 20~23 50
TAV27 27 20~26 53
TAV30 30 26~29 53

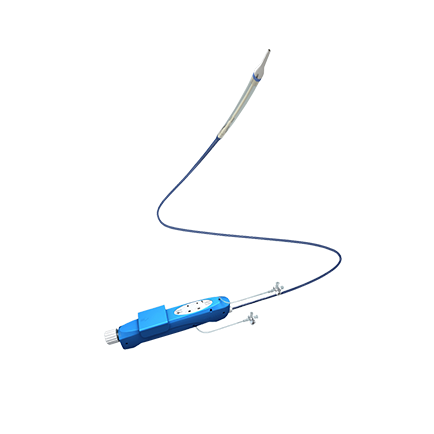

Delivery System
Product Picture
Delivery System
Product Code Valve Outer Diameter D1(mm) Valve Section Length L2(cm) Actual Length L1(cm)
6FL 5.3+/-0.5(16F) 8.7+/-1 112+/-5
18FL-S 6.0+/-0.5(18F) 8.8+/-1 112+/-5
18FL 6.0+/-0.5(18F) 9.0+/-1 112+/-5
Specification Relationship between Aortic Valve and Delivery System
Valve Product Code Delivery System Product Code
TAV21 16FL /
TAV24 16FL 18FL-S
TAV27 18FL /
TAV30 18FL /
×
